40×120 Light Aluminium Profile — Slot 8, Cut to Size
88,98 € / m excl. VATVAT per m: 21,36 €
Total incl. VAT per m: 110,34 € /50mm
Base price for 50 mm. Choose your length to see the final net price, VAT and total below.
Price per metre. Enter your cut length in millimetres (50–2000 mm). Cutting and selected machining are added to the configured total below and in your cart; they are not included in this per-metre reference price. Assembly is by quotation and shipping is agreed separately.

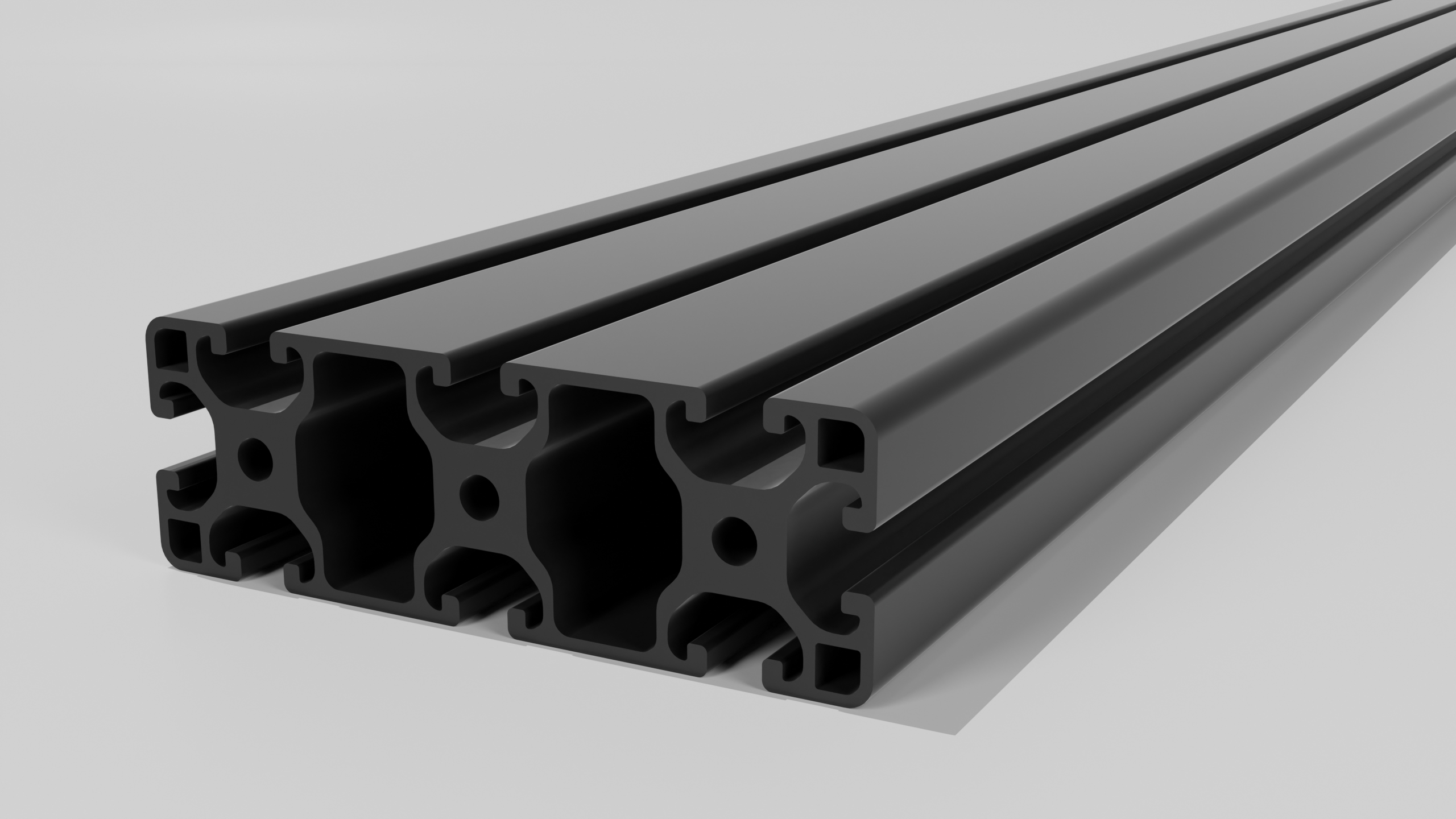

Black anodised 40×120 mm standard aluminium extrusion profile with 8 mm slots. Select a cut length from 50 to 2000 mm.
✂ Cut to your length, 50–2000 mm · 3D and CAD downloads
Industrial high-strength aluminium profile
| Section | 120×40 mm, slot 8 (I-type) |
|---|---|
| Material | EN AW-6063 T66 |
| Surface | Black anodised |
| Weight | 4.321 kg/m |
| Moment of inertia Ix / Iy | 24.41 / 220.1 cm⁴ |
| Section modulus Wx / Wy | 12.2 / 36.68 cm³ |
Section values are manufacturer values from the TSLOT catalogue 10/2026. Fits standard 8 mm slot T-nuts, brackets and mounts.
Build a modular sim rig or accessory frame with this 40×120 mm Light aluminium profile. The black anodised extrusion has 8 mm slots for matching T-slot nuts and brackets.
Cut length and assembly
Enter the required length from 50 to 2000 mm and select the quantity on this page. Check the calculated product total before adding to the cart. Match the section and slot dimensions to your connectors and mounting hardware.
Profile 40×120 Light aluminium profile
Black anodised aluminium profile for modular frames, seat bases, monitor supports and sim racing accessories. The 8 mm slots allow compatible fasteners and brackets to be positioned along the profile.
Design and assembly
Allowable load depends on span, support conditions, connectors and assembly. Select the appropriate connections and supports for the intended structure. Detailed section properties are available in the separate Technical Information section below.
Explore related aluminium profiles cut to size for your build.
| Section / slot | 120 × 40 mm / 8 mm |
| Material / finish | EN AW 6063 T66 / Black anodised |
| Mass | 4.321 kg/m |
| Ix / Iy | 24.41 / 220.1 cm⁴ |
| Wx / Wy | 12.20 / 36.68 cm³ |
Ix, Iy, Wx and Wy are section properties, not load ratings.
| Size | 120×40 mm |
|---|---|
| Material | Aluminium EN AW-6063 T66 |
| Finish | Black anodised |
| Weight | 4.321 kg/m |
| Colour | Black |
120x40 Standard Aluminium Profile
Download the cross-section drawing and key dimensions for this I-type, Series 8 profile.
SimSlot Standard corresponds to supplier Light. Source geometry reference: PI-1155 SZ, Maunsystem.
Select the required cut length and finish on the product page. The 100 mm 3D sample illustrates the section only; it is not the ordered length. The source drawing does not specify the supplied colour or coating.
Prepared by SimSlot using the verified Maunsystem cross-section source . PDF contains dimensions and source attribution; no supplier price, stock-length offer or load-rating claim.
